LUMIN A 1

A1 SPECIFICATION

• DSD SUPPORT:
  • DSD64 2.8MHz, 1-bit
• HDMI OUTPUT:
  • PCM 44.1kHz–192kHz, 16–24-bit
  • DSD 2.8MHz, 1-bit
• ANALOG OUTPUT STAGE:
  • Wolfson WM8741 DAC chips, 1 chip per channel
  • Fully balanced layout with high-quality components
  • Output connectors coupled with dual LUNDAHL LL7401 output transformers
• POWER SUPPLY:
  • External dual-toroidal
  • Available in 240V and 110V versions
• PHYSICAL:

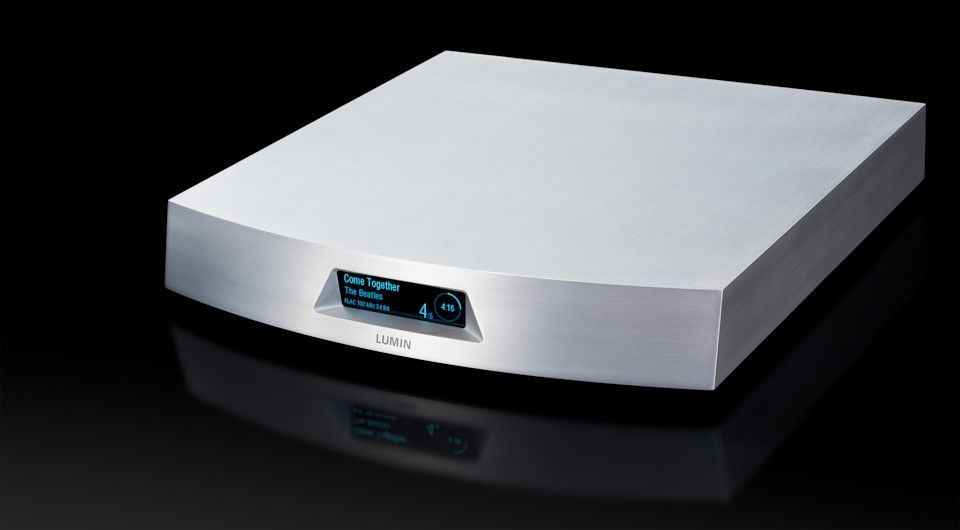

  • LUMIN (SOLID ALUMINIUM CHASSIS):
    • 350mm (W), 345mm (D), 60mm (H), 8kg
  • DUAL-TOROIDAL PSU:
    • 100mm (W), 295mm (D), 55mm (H), 2kg

SPECIFICATION FOR ALL LUMIN MUSIC PLAYERS

• STREAMING PROTOCOL:
  • UPnP AV protocol with audio streaming extension
  • Gapless Playback
  • On-Device Playlist
• SUPPORTED AUDIO FILE FORMATS:
  • DSD LOSSLESS:
    • DSF (DSD), DIFF (DSD), DoP (DSD)
  • PCM LOSSLESS:
    • FLAC, Apple Lossless (ALAC), WAV, AIFF
  • COMPRESSED (LOSSY) AUDIO:
    • MP3, AAC (in M4A container)
• SUPPORTED AUDIO SAMPLE RATES, BIT DEPTHS, NUMBER OF CHANNELS:
  • PCM, 44.1kHz - 384kHz, 16 - 32bit, Stereo
  • DSD, 2.8MHz, 1bit, Stereo (5.6MHz on LUMIN S1)
• UPSAMPLING RATES & BIT DEPTHS:
  • DSD upsampling option for all files up to 96kHz
• SUPPORTED CONTROL DEVICES:
  • All models of Apple iPad (v2 or later). iOS 5.0 or later required. Full Retina Display support.
• APP FEATURES:
  • High-resolution artwork. Artwork caching. AirPlay compatibility. Multiple-tag handling. ‘Composer’ tag support. Find & Filter. Tag browsing.
• INPUT:
  • Ethernet Network 100Base-T
  • USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only)

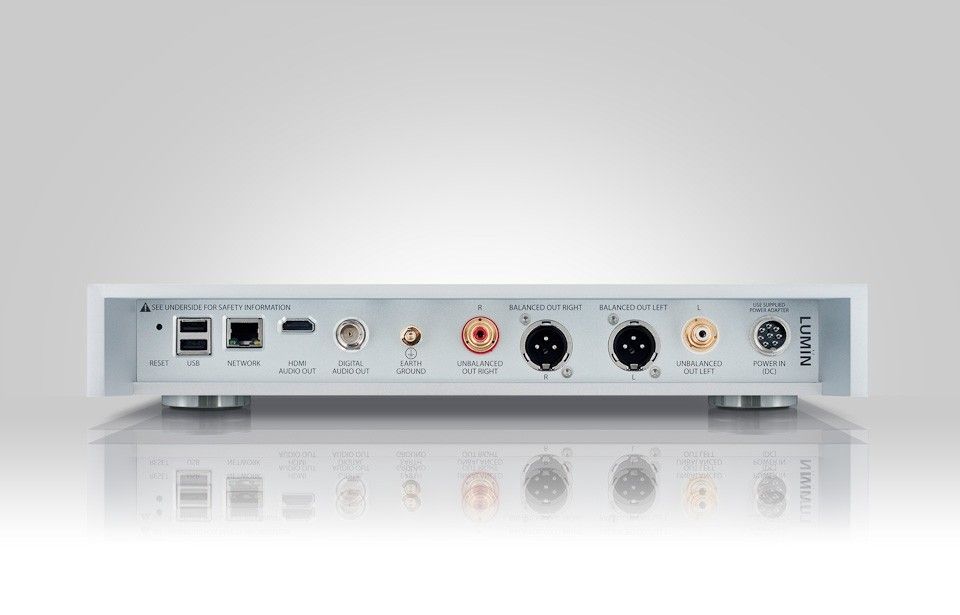

• OUTPUTS:
  • ANALOG AUDIO:
    • XLR balanced, 4Vrms, pin 2 Hot
    • RCA unbalanced, 2Vrms
  • DIGITAL AUDIO:
    • BNC SPDIF:
      • PCM 44.1kHz-192kHz, 16-24bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1bit
      HDMI:
      • PCM 44.1kHz-192kHz, 16-24bit
      • DSD (Native or DoP) 2.8MHz, 1bit
• FINISH:
  • Raw brushed aluminium
  • Black anodised aluminium finish is available as a special order item.Please contact your retailer for costs and lead time
• OTHER:
  • Firmware-upgradable for further features and enhancements

Specifications are subject to change without notice
